Tippmann X7 drop forward Item details: Nummech's unique drop-forwards are designed for many markers that utilize a gas-through ASA tank adapter. Drop-forwards are the easiest method to shorten your marker's tank position. When using a drop-forward, you can lean tighter into the marker and take up less horizontal space when crouched behind cover. Not everybody likes to use a drop-forward, but this is the perfect solution for those looking to shorten their profile.

While you can theoretically use this drop forward on many other markers, it was specifically designed for use with the X7 Phenom edition's internal air routing. You can also use this accessory with Nummech's X7 Phenom shutoff ASA.

Compatible with any X7 marker (both the Phenom and non-Phenom versions).
Relocates your tank approximately 3-1/2" forward and 1-3/4" down (89-cm forward and 47-cm down).
Internally ported to keep the marker "hoseless".
Machined from solid billet aluminum 6061-T6 and plated with type-2 anodizing.
Lifetime limited warranty included.

Integrated drop forward mount
New mounting hardware and pressure connection
Installation instructions

X7 drop forward -Typical color/finish options: BLACK GLOSS
-The item is in stock if you are able to add-to-cart below. If not then the item is backordered.
-Most aluminum products are available as either gloss or dust finish. "Gloss" components are smooth and somewhat reflective. "Dust" components have a matte or diffused finish which is non-reflective. "Polished" components have been buffed to a high sheen/luster (uncommon for our standard products due to the cost involved).
-Raw items are usually available for custom marker builds; contact us for information.

Note: Delivery times are not guaranteed. Tracking is only available for shipments within the United States.

Related links:

Instructions: Tippmann X7 drop forward Installation instructions
Replacement hardware: Tippmann X7 drop forward

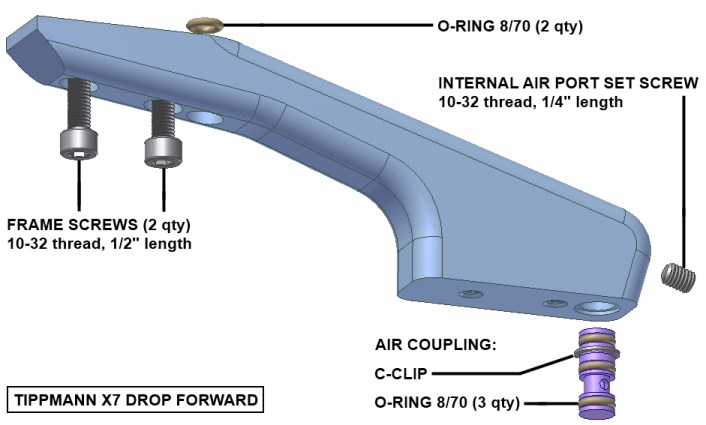

Item:	Description:	Price/each:	Diagram:
Pressure coupling C-clip	C-clip; 5/16" inside diameter	$0.75
Pressure coupling o-ring	O-ring; size 8/70	$0.30
Drop forward bottomline screw	Socket head cap screw; 10-32 thread, 1/2" length	$0.75
Drop forward coupling (complete)	Includes the coupling, o-rings, and c-clip	$6.75
Internal air port set screw	Set screw; 10-32 thread, 1/4" length, black oxide	$0.75

Description of production changes: X7 drop forward Version 1: The original style of X7 drop forwards. These were anodized with a black dust finish and have a flat outer surface with no engraving. Version 2: The current style of X7 drop forwards. They can be identified by the ball-rounded cosmetic grooves milled into either side, and the Nummech logo is also engraved into the sides. The text "X7" is also engraved into the top surface. These drop forwards are anodized black gloss to better match the marker.
